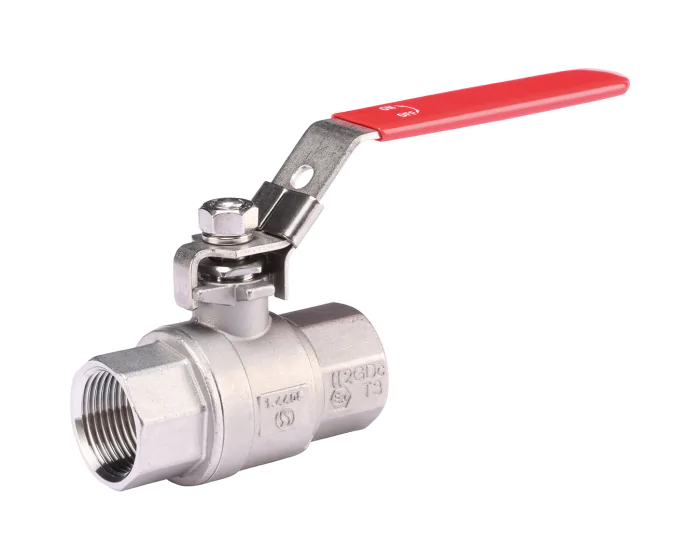

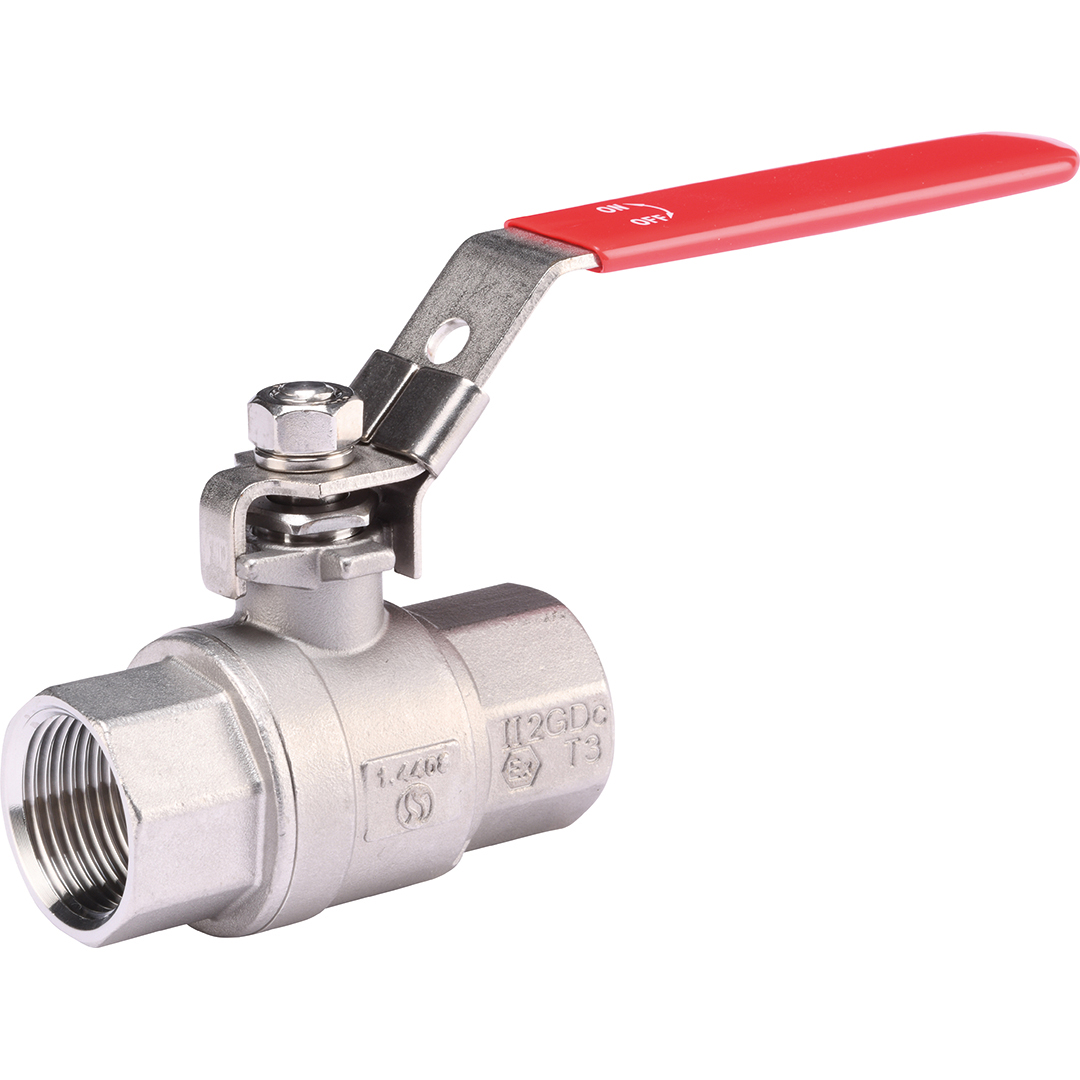

The Sferaco 704 series ball valve, in stainless steel, with long thread NPT connection and DIN 3202 M3 face to face, for the chemical, petrochemical, hydraulic, pharmaceutical industries and ATEX environment.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| EN face-to-face standard | EN 16722 M3 Series |
| DIN face-to-face standard | DIN 3202 M3 |
| Face to face standard | EN 16722 M3. DIN 3202 M3 |
| Thread standard | ANSI B1.20.1 |
| Tightness test standard | ISO 5208. Rate A |
| Stem sealing material | PTFE gland packing |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| ATEX compatible | Yes |
| Torque (Nm) | 2 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 590.0 |
| Fluid | Acids |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | NPT FF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -50 |
| Ball valve design | 2-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 1/4'' | 704002 | S1006434 |
€8.49
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 3/8'' | 704003 | S1006435 |
€9.81
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2'' | 704004 | S1006436 |
€11.50
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 3/4'' | 704005 | S1006437 |
€15.71
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 1'' | 704006 | S1006438 |
€23.96
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/4 | 704007 | S1006439 |
€38.29
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/2 | 704008 | S1006440 |
€50.71
(excl. btw)
|
add to cart |
| NPT FF Stainless steel CF8M (1.4408) Full 2-piece body 2'' | 704009 | S1006441 |
€81.17
(excl. btw)
|
add to cart |
